基本信息

Azure Storage Accounts 是 Microsoft Azure 中的基础服务,提供可扩展、安全且高可用的云 用于各种数据类型的存储,包括 blobs (binary large objects)、files、queues 和 tables。它们作为容器,将这些不同的存储服务组合在单一命名空间下以便于管理。

主要配置选项

  • 每个 storage account 必须在 整个 Azure 中具有唯一名称
  • 每个 storage account 部署在一个 region 或 Azure extended zone 中。
  • 可以选择 storage account 的 premium 版本以获得更好的性能。
  • 可以在 4 种冗余类型 中选择,以防护机架、磁盘和数据中心级别的 故障

安全配置选项

  • Require secure transfer for REST API operations:要求所有与 storage 的通信使用 TLS。
  • Allows enabling anonymous access on individual containers:如果未启用,将来无法为容器启用匿名访问。
  • Enable storage account key access:如果未启用,则 Shared Keys 访问将被禁止。
  • Minimum TLS version
  • Permitted scope for copy operations:允许来自任意 storage account、来自相同 Entra tenant 的任意 storage account,或来自同一虚拟网络内具有 private endpoints 的 storage account。

Blob Storage options

  • Allow cross-tenant replication
  • Access tier:Hot(频繁访问的数据)、Cool 和 Cold(很少访问的数据)

Networking options

  • Network access
  • Allow from all networks
  • Allow from selected virtual networks and IP addresses
  • Disable public access and use private access
  • Private endpoints:允许从虚拟网络到 storage account 的私有连接

Data protection options

  • Point-in-time restore for containers:允许将容器恢复到较早的状态
  • 它需要启用 versioning、change feed 和 blob soft delete。
  • Enable soft delete for blobs:为已删除的 blob(即使被覆盖)启用以天为单位的保留期
  • Enable soft delete for containers:为已删除的容器启用以天为单位的保留期
  • Enable soft delete for file shares:为已删除的 file share 启用以天为单位的保留期
  • Enable versioning for blobs:保存 blob 的历史版本
  • Enable blob change feed:记录 blob 的创建、修改和删除变更日志
  • Enable version-level immutability support:允许在 account 级别设置基于时间的保留策略,该策略将应用于所有 blob 版本。
  • Version-level immutability support 和 point-in-time restore for containers 无法同时启用。

Encryption configuration options

  • Encryption type:可以使用 Microsoft-managed keys (MMK) 或 Customer-managed keys (CMK)
  • Enable infrastructure encryption:允许对数据进行双重加密以“提高安全性”

Storage endpoints

Storage ServiceEndpoint
Blob storagehttps://.blob.core.windows.net

https://.blob.core.windows.net/?restype=container&comp=list
Data Lake Storagehttps://.dfs.core.windows.net
Azure Fileshttps://.file.core.windows.net
Queue storagehttps://.queue.core.windows.net
Table storagehttps://.table.core.windows.net

公开暴露

如果 “Allow Blob public access” 被 启用(默认禁用),在创建容器时可以:

  • 赋予 public access to read blobs(你需要知道名称)。
  • List container blobs读取 它们。
  • 将容器设置为完全 private

Static website ($web) exposure & leaked secrets

  • Static websites 通过专用的 $web 容器从区域特定的端点提供,例如 https://<account>.z13.web.core.windows.net/
  • $web 容器可能通过 blob API 报告 publicAccess: null,但文件仍可通过静态站点端点访问,因此将 config/IaC 工件放在那里可能会导致 secrets 被 leaked。
  • 快速审计工作流:
# Identify storage accounts with static website hosting enabled
az storage blob service-properties show --account-name <acc-name> --auth-mode login
# Enumerate containers (including $web) and their public flags
az storage container list --account-name <acc-name> --auth-mode login
# List files served by the static site even when publicAccess is null
az storage blob list --container-name '$web' --account-name <acc-name> --auth-mode login
# Pull suspicious files directly (e.g., IaC tfvars containing secrets/SAS)
az storage blob download -c '$web' --name iac/terraform.tfvars --file /dev/stdout --account-name <acc-name> --auth-mode login

审计匿名 blob 暴露

  • 定位 storage accounts 可暴露数据: az storage account list | jq -r '.[] | select(.properties.allowBlobPublicAccess==true) | .name'。如果 allowBlobPublicAccessfalse,你无法将 containers 设为公开。
  • 检查有风险的 storage accounts 以确认该标志和其他弱配置: az storage account show --name <acc> --query '{allow:properties.allowBlobPublicAccess, minTls:properties.minimumTlsVersion}'
  • 枚举 container 级别的暴露(在该标志启用的情况下):
az storage container list --account-name <acc> \
--query '[].{name:name, access:properties.publicAccess}'
  • "Blob": 匿名读取被允许 仅当已知 blob 名称时 (不可列出).
  • "Container": 匿名 列出 + 读取 每个 blob.
  • null: 私有;需要认证.
  • 在无凭证情况下证明访问:
  • 如果 publicAccessContainer,匿名列出有效: curl "https://<acc>.blob.core.windows.net/<container>?restype=container&comp=list".
  • 对于 BlobContainer,当名称已知时,匿名下载 blob 有效:
az storage blob download -c <container> -n <blob> --account-name <acc> --file /dev/stdout
# or via raw HTTP
curl "https://<acc>.blob.core.windows.net/<container>/<blob>"

连接到存储

如果发现任何可以连接的 存储,可以使用工具 Microsoft Azure Storage Explorer 来进行连接。

访问存储

RBAC

可以使用 Entra ID principals 与 RBAC roles 来访问 storage accounts,这是推荐的方式。

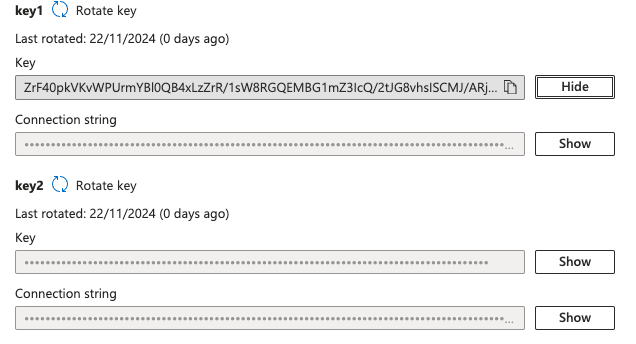

Access Keys

storage accounts 有可以用来访问它的 access keys。 这会提供对存储账户的 full access to the storage account.

Shared Keys & Lite Shared Keys

可以通过使用 access keys 签名来generate Shared Keys,以通过签名 URL 授权对某些资源的访问。

Note

注意 CanonicalizedResource 部分表示存储服务资源 (URI)。如果 URL 中的任何部分被编码,则在 CanonicalizedResource 内也应进行编码。

Note

在默认情况下由 az cli 使用 来验证请求。要使其使用 Entra ID principal 的凭证,请指定参数 --auth-mode login

  • 可以通过签名以下信息来生成用于 blob, queue 和 file services 的 shared key
StringToSign = VERB + "\n" +
Content-Encoding + "\n" +
Content-Language + "\n" +
Content-Length + "\n" +
Content-MD5 + "\n" +
Content-Type + "\n" +
Date + "\n" +
If-Modified-Since + "\n" +
If-Match + "\n" +
If-None-Match + "\n" +
If-Unmodified-Since + "\n" +
Range + "\n" +
CanonicalizedHeaders +
CanonicalizedResource;
  • 可以通过签署以下信息来生成一个 shared key for table services
StringToSign = VERB + "\n" +
Content-MD5 + "\n" +
Content-Type + "\n" +
Date + "\n" +
CanonicalizedResource;
  • 可以通过对以下信息进行签名来生成 lite shared key for blob, queue and file services
StringToSign = VERB + "\n" +
Content-MD5 + "\n" +
Content-Type + "\n" +
Date + "\n" +
CanonicalizedHeaders +
CanonicalizedResource;
  • 可以通过对以下信息进行签名来生成 lite shared key for table services
StringToSign = Date + "\n"
CanonicalizedResource

然后,要使用该密钥,可以在 Authorization 头中按以下语法进行:

Authorization="[SharedKey|SharedKeyLite] <AccountName>:<Signature>"
#e.g.
Authorization: SharedKey myaccount:ctzMq410TV3wS7upTBcunJTDLEJwMAZuFPfr0mrrA08=

PUT http://myaccount/mycontainer?restype=container&timeout=30 HTTP/1.1
x-ms-version: 2014-02-14
x-ms-date: Fri, 26 Jun 2015 23:39:12 GMT
Authorization: SharedKey myaccount:ctzMq410TV3wS7upTBcunJTDLEJwMAZuFPfr0mrrA08=
Content-Length: 0

共享访问签名 (SAS)

Shared Access Signatures (SAS) 是安全的、限时的 URL,允许在不暴露账户访问密钥的情况下,授予对 Azure Storage 帐户中资源的特定访问权限。虽然访问密钥提供对所有资源的完整管理员访问权限,SAS 通过指定权限(例如读取或写入)并定义过期时间,实现了更细粒度的控制。

SAS 类型

  • User delegation SAS:由一个 Entra ID principal 创建,该主体将为 SAS 签名并将用户的权限委派给 SAS。它只能与 blob and data lake storage 一起使用(docs)。可以 撤销 所有已生成的用户委派 SAS。
  • 即便可以生成比用户本身拥有的更多权限的 delegation SAS,如果该 principal 本身没有那些权限,SAS 也无法生效(不会发生 privesc)。
  • Service SAS:使用存储账户的某个 access keys 进行签名。可用于授予对单个存储服务中特定资源的访问。如果密钥被更新,SAS 将停止工作。
  • Account SAS:同样使用存储账户的某个 access keys 签名。它授予跨存储账户服务(Blob、Queue、Table、File)的资源访问权限,并可包含服务级操作。

access key 签名的 SAS URL 看起来像这样:

  • https://<container_name>.blob.core.windows.net/newcontainer?sp=r&st=2021-09-26T18:15:21Z&se=2021-10-27T02:14:21Z&spr=https&sv=2021-07-08&sr=c&sig=7S%2BZySOgy4aA3Dk0V1cJyTSIf1cW%2Fu3WFkhHV32%2B4PE%3D

user delegation 签名的 SAS URL 看起来像这样:

  • https://<container_name>.blob.core.windows.net/testing-container?sp=r&st=2024-11-22T15:07:40Z&se=2024-11-22T23:07:40Z&skoid=d77c71a1-96e7-483d-bd51-bd753aa66e62&sktid=fdd066e1-ee37-49bc-b08f-d0e152119b04&skt=2024-11-22T15:07:40Z&ske=2024-11-22T23:07:40Z&sks=b&skv=2022-11-02&spr=https&sv=2022-11-02&sr=c&sig=7s5dJyeE6klUNRulUj9TNL0tMj2K7mtxyRc97xbYDqs%3D

注意一些 http params

  • 参数 se 指示 SAS 的 过期日期
  • 参数 sp 指示 SAS 的 权限
  • sig 是验证 SAS 的 签名

SAS 权限

生成 SAS 时需要指明应授予的权限。根据 SAS 所针对的对象不同,可能包含不同的权限。例如:

  • (a)dd, (c)reate, (d)elete, (e)xecute, (f)ilter_by_tags, (i)set_immutability_policy, (l)ist, (m)ove, (r)ead, (t)ag, (w)rite, (x)delete_previous_version, (y)permanent_delete

SFTP Support for Azure Blob Storage

Azure Blob Storage 现在支持 SSH File Transfer Protocol (SFTP),允许直接向 Blob Storage 进行安全的文件传输和管理,而无需自定义解决方案或第三方产品。

主要特性

  • Protocol Support:SFTP 适用于配置了 hierarchical namespace (HNS) 的 Blob Storage 帐户。这会将 blobs 组织为目录和子目录,便于导航。
  • Security:SFTP 使用本地用户标识进行身份验证,不与 RBAC 或 ABAC 集成。每个本地用户可以通过以下方式进行身份验证:
    • Azure-generated passwords
    • Public-private SSH key pairs
  • Granular Permissions:可以为本地用户在最多 100 个容器上分配诸如 Read、Write、Delete 和 List 的权限。
  • Networking Considerations:SFTP 通过端口 22 建立连接。Azure 支持防火墙、private endpoints 或虚拟网络等网络配置,以保护 SFTP 流量。

配置要求

  • Hierarchical Namespace:在创建存储帐户时必须启用 HNS。
  • Supported Encryption:要求使用 Microsoft Security Development Lifecycle (SDL) 批准的加密算法(例如 rsa-sha2-256、ecdsa-sha2-nistp256)。
  • SFTP Configuration:
    • 在存储帐户上启用 SFTP。
    • 创建具有适当权限的本地用户标识。
    • 为用户配置 home directories,以定义其在容器内的起始位置。

权限

PermissionSymbolDescription
读取r读取文件内容。
写入w上传文件并创建目录。
列出l列出目录内容。
删除d删除文件或目录。
创建c创建文件或目录。
修改所有者o更改拥有用户或组。
修改权限p更改文件或目录的 ACLs。

Enumeration

az cli enumeration ```bash # Get storage accounts az storage account list #Get the account name from here

BLOB STORAGE

List containers

az storage container list –account-name

Check if public access is allowed

az storage container show-permission
–account-name
-n

Make a container public

az storage container set-permission
–public-access container
–account-name
-n

List blobs in a container

az storage blob list
–container-name
–account-name

Download blob

az storage blob download
–account-name
–container-name
–name
–file </path/to/local/file>

Create container policy

az storage container policy create
–account-name mystorageaccount
–container-name mycontainer
–name fullaccesspolicy
–permissions racwdl
–start 2023-11-22T00:00Z
–expiry 2024-11-22T00:00Z

QUEUE

az storage queue list –account-name az storage message peek –account-name –queue-name

ACCESS KEYS

az storage account keys list –account-name

Check key policies (expiration time?)

az storage account show -n –query “{KeyPolicy:keyPolicy}”

Once having the key, it’s possible to use it with the argument –account-key

Enum blobs with account key

az storage blob list
–container-name
–account-name
–account-key “ZrF40pkVKvWPUr[…]v7LZw==”

Download a file using an account key

az storage blob download
–account-name
–account-key “ZrF40pkVKvWPUr[…]v7LZw==”
–container-name
–name
–file </path/to/local/file>

Upload a file using an account key

az storage blob upload
–account-name
–account-key “ZrF40pkVKvWPUr[…]v7LZw==”
–container-name
–file </path/to/local/file>

SAS

List access policies

az storage <container|queue|share|table> policy list
–account-name
–container-name

Generate SAS with all permissions using an access key

az storage <container|queue|share|table|blob> generate-sas
–permissions acdefilmrtwxy
–expiry 2024-12-31T23:59:00Z
–account-name
-n

Generate SAS with all permissions using via user delegation

az storage <container|queue|share|table|blob> generate-sas
–permissions acdefilmrtwxy
–expiry 2024-12-31T23:59:00Z
–account-name
–as-user –auth-mode login
-n

Generate account SAS

az storage account generate-sas
–expiry 2024-12-31T23:59:00Z
–account-name
–services qt
–resource-types sco
–permissions acdfilrtuwxy

Use the returned SAS key with the param –sas-token

e.g.

az storage blob show
–account-name
–container-name
–sas-token ‘se=2024-12-31T23%3A59%3A00Z&sp=racwdxyltfmei&sv=2022-11-02&sr=c&sig=ym%2Bu%2BQp5qqrPotIK5/rrm7EMMxZRwF/hMWLfK1VWy6E%3D’
–name ‘asd.txt’

#Local-Users

List users

az storage account local-user list
–account-name
–resource-group

Get user

az storage account local-user show
–account-name
–resource-group
–name

List keys

az storage account local-user list
–account-name
–resource-group

</details>

{{#endtab }}

{{#tab name="Az PowerShell" }}

<details>
<summary>Az PowerShell enumeration</summary>
```powershell
# Get storage accounts
Get-AzStorageAccount | fl
# Get rules to access the storage account
Get-AzStorageAccount | select -ExpandProperty NetworkRuleSet
# Get IPs
(Get-AzStorageAccount | select -ExpandProperty NetworkRuleSet).IPRules
# Get containers of a storage account
Get-AzStorageContainer -Context (Get-AzStorageAccount -name <NAME> -ResourceGroupName <NAME>).context
# Get blobs inside container
Get-AzStorageBlob -Container epbackup-planetary -Context (Get-AzStorageAccount -name <name> -ResourceGroupName <name>).context
# Get a blob from a container
Get-AzStorageBlobContent -Container <NAME> -Context (Get-AzStorageAccount -name <NAME> -ResourceGroupName <NAME>).context -Blob <blob_name> -Destination .\Desktop\filename.txt

# Create a Container Policy
New-AzStorageContainerStoredAccessPolicy `
-Context (Get-AzStorageAccount -Name <NAME> -ResourceGroupName <NAME>).Context `
-Container <container-name> `
-Policy <policy-name> `
-Permission racwdl `
-StartTime (Get-Date "2023-11-22T00:00Z") `
-ExpiryTime (Get-Date "2024-11-22T00:00Z")
#Get Container policy
Get-AzStorageContainerStoredAccessPolicy `
-Context (Get-AzStorageAccount -Name <NAME> -ResourceGroupName <NAME>).Context `
-Container "storageaccount1994container"

# Queue Management
Get-AzStorageQueue -Context (Get-AzStorageAccount -Name <NAME> -ResourceGroupName <NAME>).Context
(Get-AzStorageQueue -Name <NAME> -Context (Get-AzStorageAccount -name <NAME> -ResourceGroupName <NAME>).Context).QueueClient.PeekMessage().Value

#Blob Container
Get-AzStorageBlob -Container <container-name> -Context $(Get-AzStorageAccount -name "teststorageaccount1998az" -ResourceGroupName "testStorageGroup").Context
Get-AzStorageBlobContent `
-Container <container-name> `
-Blob <blob-name> `
-Destination <local-path> `
-Context $(Get-AzStorageAccount -name "teststorageaccount1998az" -ResourceGroupName "testStorageGroup").Context

Set-AzStorageBlobContent `
-Container <container-name> `
-File <local-file-path> `
-Blob <blob-name> `
-Context $(Get-AzStorageAccount -name "teststorageaccount1998az" -ResourceGroupName "testStorageGroup").Context

# Shared Access Signatures (SAS)
Get-AzStorageContainerAcl `
-Container <container-name> `
-Context (Get-AzStorageAccount -Name <NAME> -ResourceGroupName <NAME>).Context

New-AzStorageBlobSASToken `
-Context $ctx `
-Container <container-name> `
-Blob <blob-name> `
-Permission racwdl `
-ExpiryTime (Get-Date "2024-12-31T23:59:00Z")

文件共享

Az - File Shares

权限提升

Az - Storage Privesc

利用后操作

Az - Blob Storage Post Exploitation

持久化

Az - Storage Persistence

参考资料

Tip

学习并练习 AWS Hacking:HackTricks Training AWS Red Team Expert (ARTE)
学习并练习 GCP Hacking: HackTricks Training GCP Red Team Expert (GRTE)
学习并练习 Az Hacking: HackTricks Training Azure Red Team Expert (AzRTE)

支持 HackTricks
